2026 Veenhuis VRSK 23000 Mega
Machine Information
Make
Veenhuis
Model
VRSK 23000 Mega
Model Year
2026
Details

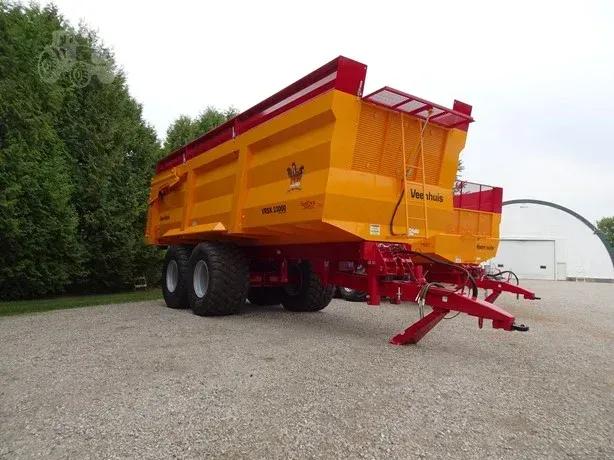

58 Cubic meter (2050 Cubic feet) Heaped or 50.2 Cubic meter (1775 Cubic feet) Watervolume, Veenhuis VRSK 23000 Mega Silage and Grain Dump Trailer. Standard Equipped. Inside box dimensions 8.00m x 2.85m x 1.75m = 39.9 cubic meters. Tapered box with 5 mm floor and 4 mm profiled side panels. Rated loading capacity 23,000 kg or 50,700 lbs. Overhang from rear pivot to back end of box 0.96m. 1 - Outside ladder & grain door. In-line safety check valve mounted before dump cylinder. Hydraulic volume hoist, 46 liters or 12.15 USG. HD hydraulic tailgate with side lift arms. Double-acting hydraulic jack stand cylinder with hand pump. Hydraulic brakes on all four wheels, brake drums with slack adjusters. Adjustable-in-height tongue. Estimated weight empty: 11,700 kg or 25,740 lbs. Outside box dimensions, (NO extensions): L x W x H = 8.10 m x 3.15 m x 1.75 m + 0.45 m. Overall Height with 850/50 R30.5 tires, from ground up (excluding extensions) 1.82 + 1.75 m = 3.58 m or 141". Total width outside tire to outside tire with 850/50 R30.5 tires = 317.5 cm or 125" or 10' 5". Overall box width including fenders = 325 cm or 128" or 10'8". Rims are negative 50mm. (Meaning 50mm wider versus 0. (Center flange mount.) Equipped with the following options: - 45 cm extensions with quick locks. Adds 10.26 cubic meters to the standard box. Total water volume: 50.2 cubic meters. - Hydraulic 90 degree Folding Front Extension - Long Drawbar Hitch- 2.07m or 81" - HD N/A Style Coupler Eye. Comes with 2 exchangeable pivot balls to fit 1.5" and 2" draw-pin. (This is an upgraded price versus the standard coupler eye) Heavy Duty Rear Hitch-hitch only HD Tandem Axle with 10 Bolt Wheel Hubs - Tandem bridge height 46 cm (Tandem Spread 180 cm. Tracking width 224 cm.) - BKT 850/50R30.5 tires, FL-693 M Ridemax, L-S Index 182D. 1650 mm High and 850 mm Wide. (When tires are installed on the JVSK 23000 Mega, the overall width outside to outside tire = 317.5 cm or 125" or 10' 5".) Axle Type - Heavy-Duty Eccentric Double-Beam Tandem Axle Width - 126 in Shipping Length - 420 in Shipping Width - 126 in Shipping Height - 158 in Shipping Weight - 25,740 lb
Location
Lakeside, Ontario, CANADA, N0M 2G0
Stock Number
BCBGJEB9
Serial Number/VIN
SN19504
New/Used
New
Category
Trailers
Sub-Category
Other Trailers
Seller type
DEALER
Length
27 ft.
Tire Size
BKT 850/50R30.5
Rebates for new machinery are updated frequently, so we are unable to display a price for this listing. Give us a call and we will get you the best deal possible.
