Brillion LSP-6 3-Point Landscape Seeder, Dual Pulverizer Rollers
Machine Information
Make
Brillion
Model
brillion-lsp-landscape-seeder
Details

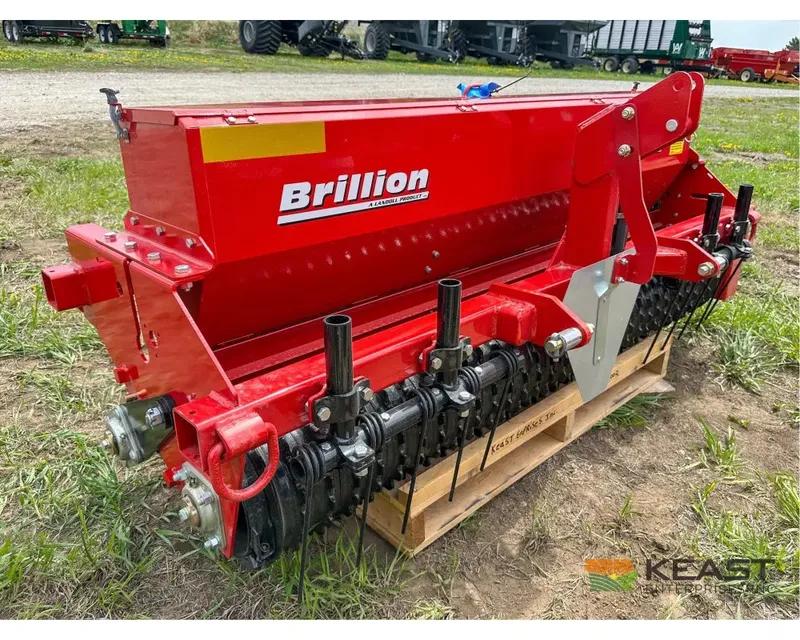

Overview Available for Rent! The Brillion LSP‑6 Landscape Seeder is a rugged, 6-foot broadcast seeder designed for turf professionals, landscapers, and municipal crews. Its welded steel frame features front and rear cast-iron pulverizer rollers, a blade-agitator seed box, and a floating Category I/II hitch. It's ideal for as lawns, athletic fields, and roadside plantings, without requiring hydraulics or PTO output. It utilizes the proven Sure Stand concept to meter and broadcast seed precisely while preparing and firming the seedbed in a single pass. Key Features Blade-Agitator Seed MeteringOne 4.5-bushel seed box with a blade agitator provides reliable ground-driven broadcast seeding. Metering blades spaced 3 inches apart ensure uniform distribution across the full width, accommodating a wide variety of landscape grass, flower, and forage seeds. Dual Pulverizer RollersAn 11.5-inch front roller cuts into the soil surface, followed by a 9.5-inch rear roller that firms seed placement. Both rollers are cast iron, flange-bearing mounted, and greaseable for long-term durability. Optional notched rear or spike rollers can add depth or loosen soil further. Floating Hitch and FrameMounted via a floating three-point hitch, the LSP‑6 follows ground contours precisely. This maintains consistent seeding depth and roller pressure, reducing skips and ensuring even seed-to-soil contact across uneven terrain. Ground-Driven SimplicitySeed metering, distribution, and roller engagement are all powered by ground contact, eliminating hoses, pumps, or PTO components. The simple, mechanical drive system comes ready for immediate use. Compact, Serviceable DesignThe entire unit has a 7-ft transport width, allowing easy travel between job sites. Drive chains, bearings, and blades are all accessible for adjustments and lubrication via standard grease fittings and bolt-on components. Technical Specifications Feature Specification Working Width 72 in Transport Width 84 in Overall Length ~30 in Height ~50 in Weight ~1,000–1,100 lb (453–500 kg) Tractor Requirement 35+ HP, Category I/II 3-point hitch Seed Box Capacity 4.5 bu (blade agitator) Seed Meter Spacing 3 in Front Roller Diameter 11.5 in cast iron Rear Roller Diameter 9.5 in cast iron Roller Bearings Greaseable, flange-mount Hitch Cat I/II free link, quick hitch optional Performance At recommended operating speeds of 3–5 MPH, the LSP‑6 efficiently seeds at a rate of 3–6 acres per hour, depending on tractor speed and field conditions. The combined action of the pulverizer rollers prepares and firms the seedbed in one pass, reducing the need for additional equipment. Blade agitators distribute seed consistently across the width, while the floating hitch system adapts to uneven surfaces, maintaining seeding accuracy. FAQ What tractors can use the LSP‑6?The LSP-6 requires a Category I/II hitch and at least 35 HP. No hydraulics or PTO required. What types of seed can be used?The blade-agitator seed box handles a wide range of seeds, from turfgrass and wildflower mixes to forage blends and cover crops. Metering spacing ensures even distribution across a variety of seed sizes. Can the roller configuration be adjusted?Yes. The rear roller can be upgraded to a notched or spike version for deeper soil engagement and improved seedbed preparation, depending on soil conditions. How deep does it seed?The rollers create indentations about half an inch deep; seed is broadcast on the surface and then covered lightly by subsequent roller action. Depth is controlled by roller weight and hitch float.
Location
Henderson, IA, USA, 51541
Stock Number
8288729596123
Serial Number/VIN
8288729596123
New/Used
New
Category
Planting Equipment
Sub-Category
Bucket, Other
Seller type
DEALER
Row Cleaners
No
Number of Rows
1
$9,374
