Sitrex QRX12 Rake, 55" Wheels, Hydraulic Width Adjust, Center Kicker Wheels
Machine Information
Make
Sitrex
Model
sitrex-qrx12-rake-55-wheels-hydraulic-width-adjust-center-kicker-wheels-1
Details

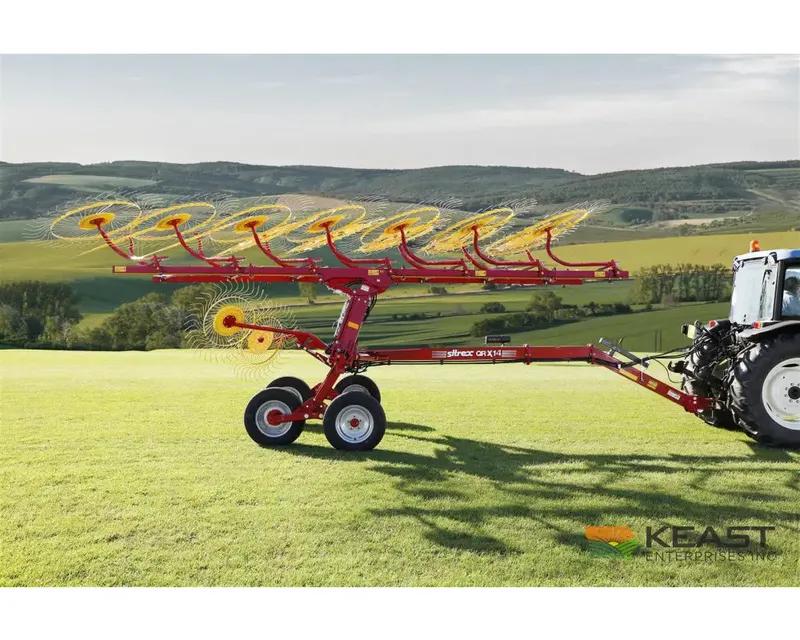

Overview The Sitrex QRX12 is a high-clearance carted rake featuring 12 independent 55″ steel finger wheels, equipped with hydraulic width adjustment plus a double center kicker wheel kit. It's built for top-quality windrow formation and flexibility in large hay operations. With operating widths from roughly 22' to 25' 1", it handles uneven terrain easily over hundreds of acres. QRX14 Shown, New Photos Coming Soon. Key Features 55″ Finger Wheels with Rugged TinesEach wheel has heat-treated long-life spring steel tines designed for efficient crop handling with minimal damage. Optional 60″ wheels are available. Hydraulic Width ControlAdjust working width 22' to 25' 1" and windrow width (3′ to 6′7″) easily for maximum flexibility and minimal operator hassle. Center Kicker Wheel KitDouble center rake wheels direct crops evenly to the center for excellent windrow uniformity. Spring-Loaded SuspensionEach rake arm is supported by a spring-backed pivot system to follow uneven ground and protect components in uneven fields. Technical Specifications Feature Specification Wheels 55″ diameter Tine Diameter 0.28″ (7 mm standard) Working Width Range 22' to 25' 1" Windrow Width 3′ – 6′7″ (0.9–2.0 m) Transport Width ~9′ 2″ Weight 2,955 lbs Wheels / Tires Tandem axle with 205/75‑15 tires HP Requirement Minimum ~50 HP on tractor Center Kicker Kit Included Width Adjustment Hydraulic
Location
Henderson, IA, USA, 51541
Stock Number
8996592910555
Serial Number/VIN
8996592910555
New/Used
New
Category
Hay & Forage
Sub-Category
Bucket, Other
Seller type
DEALER
$15,040
